Compressor oils · Technical sheet

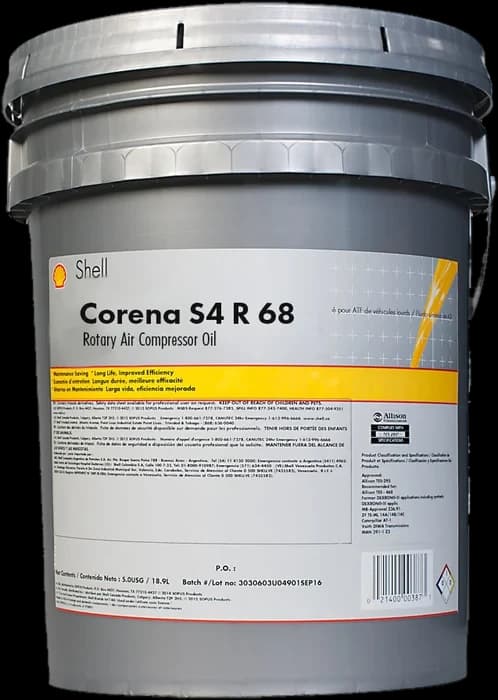

Shell Corena S4 R 68
ISO VG 68Synthetic, polyalphaolefin (PAO)
Synthetic oil for oil-flooded rotary screw and vane air compressors.
- KV 40 °C
- 68 mm²/s
- KV 100 °C
- 10.2 mm²/s
- Flash point
- 248 °C
In the store from $289.00, depending on pack size.
Use it for
- Oil-flooded or oil-injected single- and two-stage rotary screw and sliding-vane air compressors, including hot and humid duty
- ABB VTR.4 turbochargers: meets ABB's requirements for the 5,000-hour drain interval
- GEA Westfalia separators (approved)
Specifications and approvals
Classification
ISO 6743-3 L-DAJ
Typical properties
| Kinematic viscosity at 40 °C | 68 mm²/s |
|---|---|
| Kinematic viscosity at 100 °C | 10.2 mm²/s |
| Flash point | 248 °C |
| Pour point | −45 °C |
| Density at 15 °C | 848 kg/m³ |
What Shell says it does
- Resists thermal and chemical breakdown and deposits on rotors and vane slots.
- Keeps oil/air separators clean; low volatility means less carry-over and top-up.
- Ashless anti-wear system protects bearings and gears; releases air quickly without excess foam.
- Drain intervals up to 10,000 hours where the compressor maker allows. Shell recommends the lower figure in hot, humid climates.
Mixes with mineral oils, but dilution markedly reduces its performance. Avoid mixing with some other synthetic fluids.
Shell and the Shell product names are trademarks of the Shell group of companies. Approvals and specifications vary by region and data-sheet version; always check the pack and follow the equipment maker's manual. Online payment is currently unavailable; call or email the office to order.
